This page describes the string rewriting capability for documents as part of a financial printing document model. The general concept is that of abstraction to remove similarities as fill-in field placeholders and reduction to replace those similarities with the values of the fill-in fields.

The fill-in field capability is a special type of rewriting system known as a string rewriting system. Any parameterization is handled by the XSL code.

Financial documents were required to be created and published for clients. The red markings are parts whose formatting was not yet finalized. Custom charts and graphics appear throughout the document. Comments from clients, etc., appear in places that are to be adjusted.

These documents were published in many languages including Chinese, Japanese, Korean, etc., using many character set and font variations.


(PDF page)


(PDF page)


(number chart)


(bar chart)

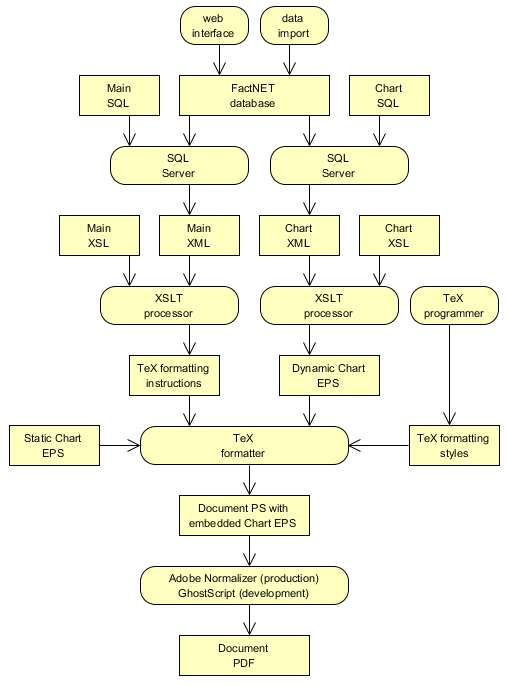

Here is a data flow diagram of the system that was used from about 2009 until about 2017 when the company split into three parts and new management decided to go in a new direction.

The /CC term "moniker" is this system was used for the name of a fill-in field despite the common definition of a "moniker" as "a familiar name or nickname for a person".

Microsoft uses the term "moniker" in certain API's to describe objects that act as identifiers. In the usage described on this page, names are used to act as text. "In Common Object Model (COM), a moniker is a standard mechanism for encapsulating the location and binding of another COM object. The textual representation of a moniker is called a display name."

Thus, what here, for historical reasons, is called a "moniker" is, in Microsoft terminology, a "display name".

All the values of name1, name2, etc., are loaded into a name-value pair environment in the XSL before beginning the output of the document. The following is an abstract example.

The XSL may then output the following as part of the document.

Note: In the actual system, post-processing C# code, as part of the XSL (and extensions) did the actual text replacement, supporting both monikers, monikers containing with monikers, etc.

The text value of name1 is substituted into the document at the place where [name1] appears. This is done recursively so that the defined text of a fill-in field name can contain other fill-in field names.

The recursion is limited so as to insure the termination of evaluation. Any cyclic reference is considered and error and is terminated by this limited recursion. This is similar to a cyclic reference in a spreadsheet being and error.

As a specific example, consider the following environment.

Consider the following text.

This text is evaluated (i.e., reduced), given the previous environment, to the following.

This text is further reduced to the following.

When no further reduction can be done the text is said to have reached a "fixed point" (in reduction space) and is said to be in "normal form".

The way in which the environment is created allows newer values to replace older values. This provides a way to have the following hierarchy of values.

• XSL default value
• system database admin fund-level value
• system database admin share-level value
• system database client fund-level value (with nicer interface)
• system database client share-level value (with nicer interface)
• XSL override value

The last value specified is the value used in the document.
